Product Parmeters
Nomina output power | 3000W/5000W |

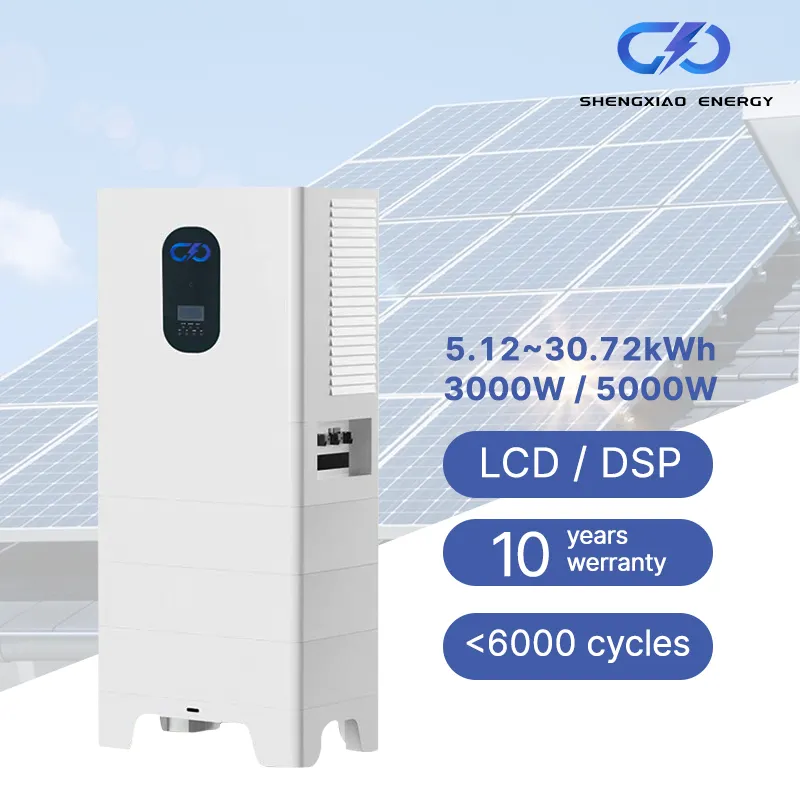

Capacity range | 5.12-30.72Khw |
Ip protection | ip21 |
Certificate | CE/UN38.3 |
Warranty | 10 years |
Rated power | 3000W/5000W |
Surge rating | 6000w/10000w |
Phase | Single phase/off grid |
Display | LCD |
Waveform | pure sine wave |
power factor | 1 |
Voltage | 230V |
Output frequency | 50Hz/60Hz |
Eficiency | >92% |

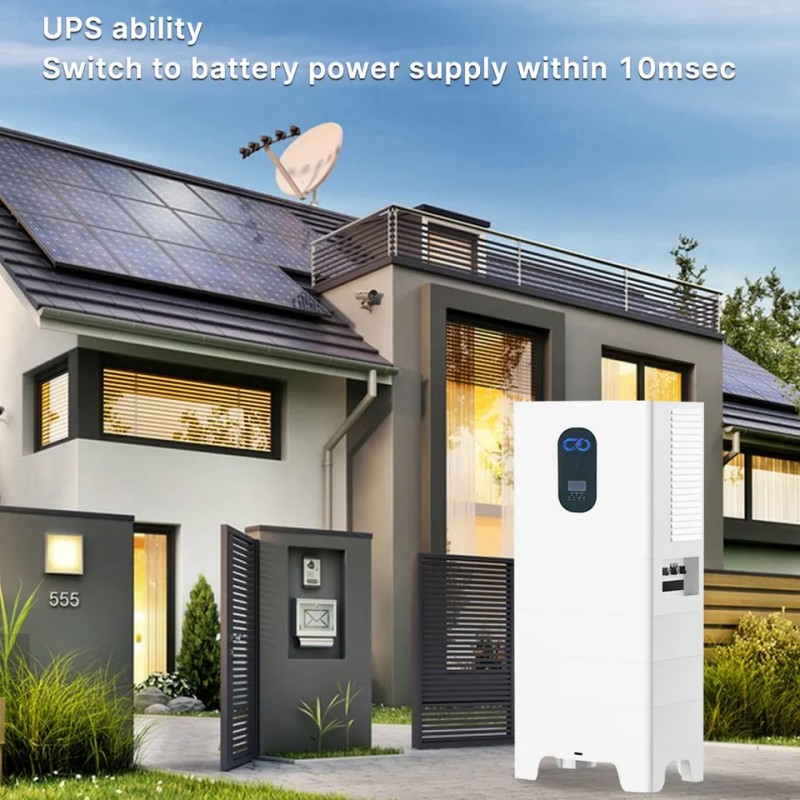

Switching time | 10ms (typical value) |
PV max. open circuit voltage | 145V |
MPPT voltage range | 60-115V |
PV max. input power | 4200W |
PV max. charge current | 80A |
Max. power grid charging current | 60A |
AC rated input voltage | 220/ 230VAC |
AC input frequency | 50Hz / 60Hz |
AC max. bypass overloadcurrent | 40A |
AC input eficiency | >95% |
Battery chemistry | Lithium lron Phosphate Battery(LiFePO4) |
Nominal voltage | 51.2V |
Battery voltage range | 43.2V~58.4V |
Battery module capacity | 5 1.2V 100Ah (5. 12kWh) |

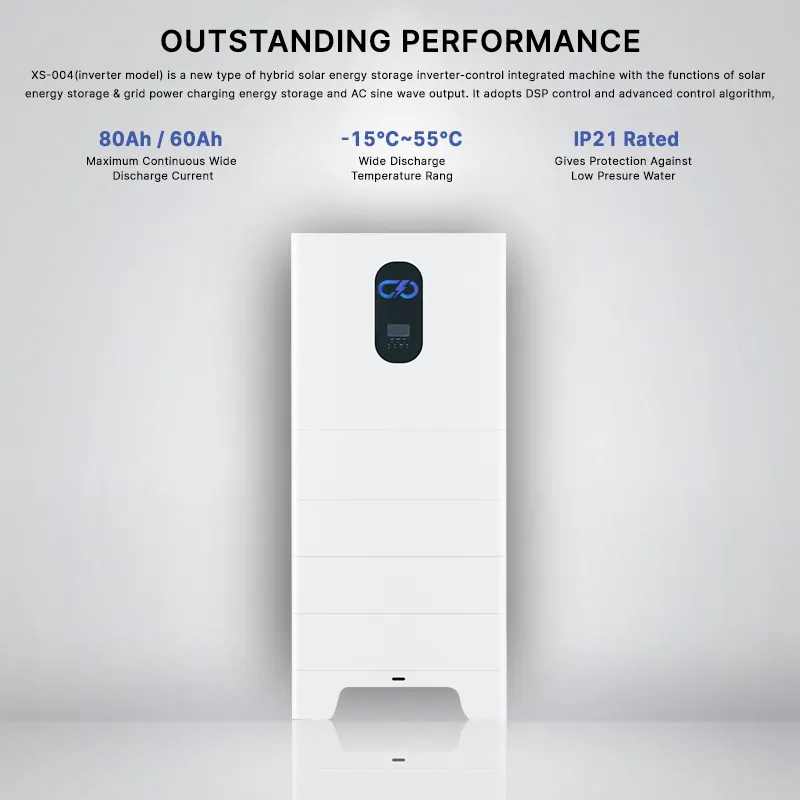

Operating temperature | - 15°C~55°C |
Cycle Life | 6000 times |
Home Solar Energy Storage System Advantages
Solar energy storage systems have become increasingly popular in recent years due to the numerous advantages they offer. Here are some of the benefits of using a solar energy storage system:
- Increased Energy Independence: With a solar energy storage system, you can generate and store your own energy, making you less dependent on traditional sources of power. This means that you can reduce your reliance on grid power during peak hours when the cost of electricity is the highest.
- Cost Savings: Investing in a solar energy storage system can result in significant cost savings in the long run. By generating and storing your own power, you can reduce your energy bills and even sell excess energy back to the grid.
- Environmental Benefits: Solar energy is a renewable and sustainable source of energy that does not produce harmful greenhouse gas emissions. By reducing your reliance on fossil fuels, you can help reduce your carbon footprint and contribute to a cleaner environment.
- Increased Power Reliability: Solar energy storage systems provide a reliable backup power source in the event of a power outage. This is especially important for those who live in areas prone to natural disasters or frequent power outages.
- Possibility of Going Off-Grid: With a solar energy storage system, it is possible to go off-grid completely and rely solely on renewable energy. This gives you complete energy independence and has the added benefit of reducing your carbon footprint even further.
In conclusion, solar energy storage systems offer numerous advantages that make them an attractive investment for homeowners and businesses alike. By generating and storing your own energy, you can reduce your energy bills, increase your energy independence, and contribute to a cleaner and more sustainable future.
