Product Paramenters
Electric Car Charging Stations
Charging Device
|
Rated Power
|
7KW
|
11KW
|
22KW
|

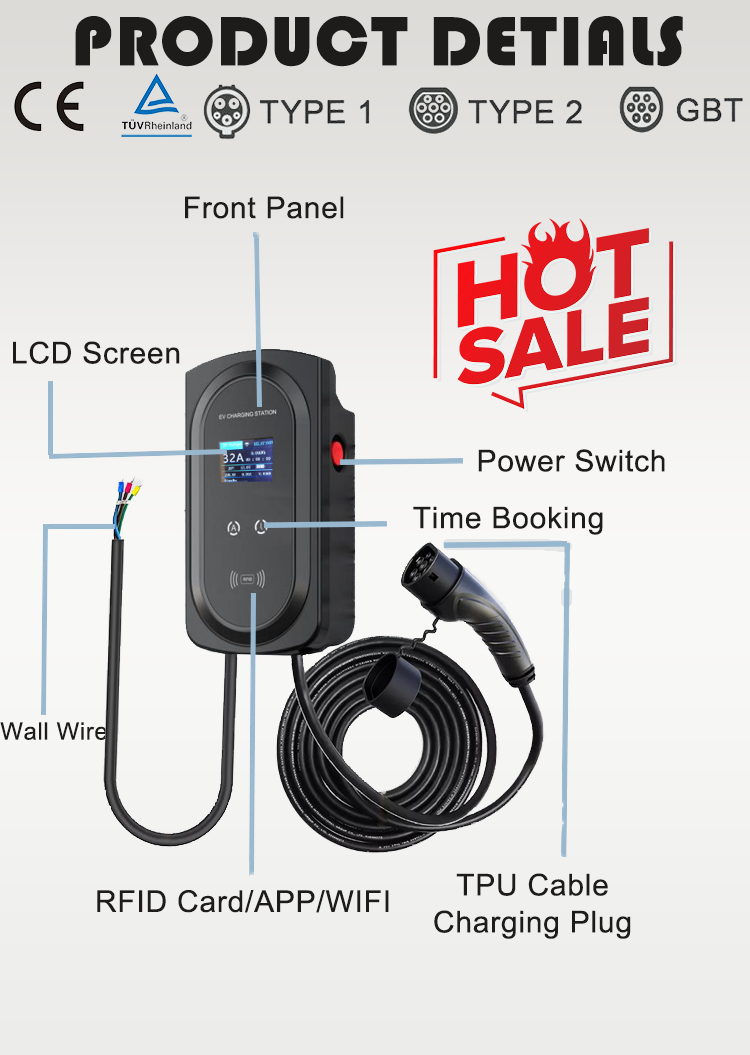

User Interface
|
LED indicator, Display screen, Current switch button, Time booking button
|
|||
Cable Routing
|
Bottom inlet wiring, Bottom outlet wiring
|
|||
Dimension
|
310*160*90mm
|
|||
Input Voltage
|
1 phase; 200-240v
|
3 phase; 380-440v
|
3 phase; 380-440v
|
|
Input Frequency
|
50/60hz
|
|||
Output Voltage
|
200-240v
|
380-440v
|
380-440v
|
|
Output Current
|
8-32A
|
8-16A
|
8-32A
|
|
Charging Wire Length
|
3/5/8/10M
|
|||

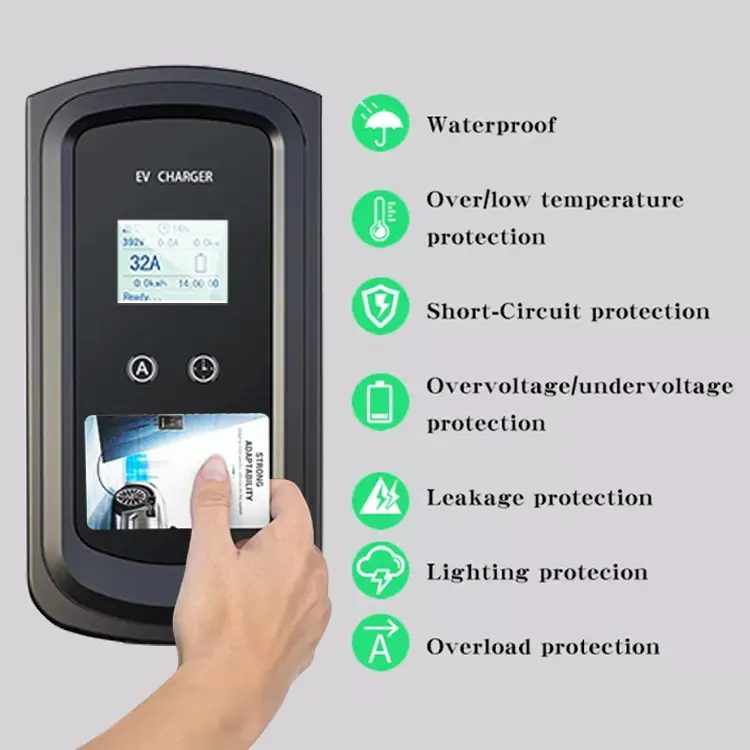

Protection Design
|
Over-current protection value
|
≥110%
|
||
Over-voltage protection value
|
265Vac for 1 phase; 460Vac for 3 phase
|
|||
Under-voltage protection value
|
175Vac for 1 phase; 310Vac for 3 phase
|
|||
Over-temperature protection value
|
80℃
|
|||
Electric leakage protection value
|
30mA, type A / type B opt
|
|||
Function Design
|
Charging model
|

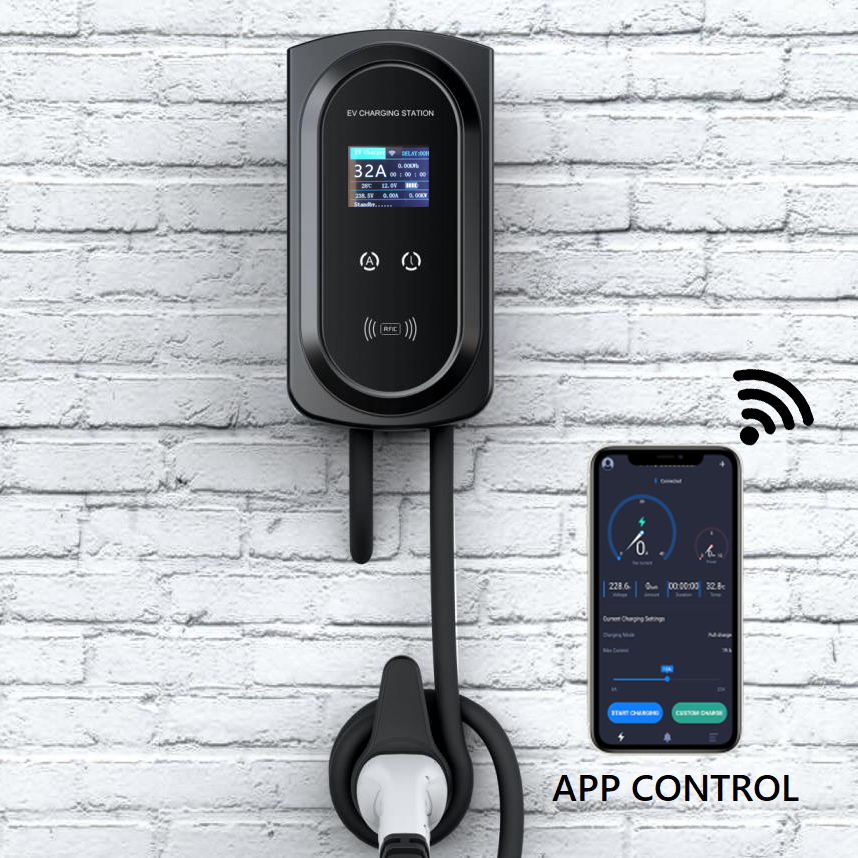

Automatic charging, card swipe, time booking, App control
|
||
Communication Interface
|

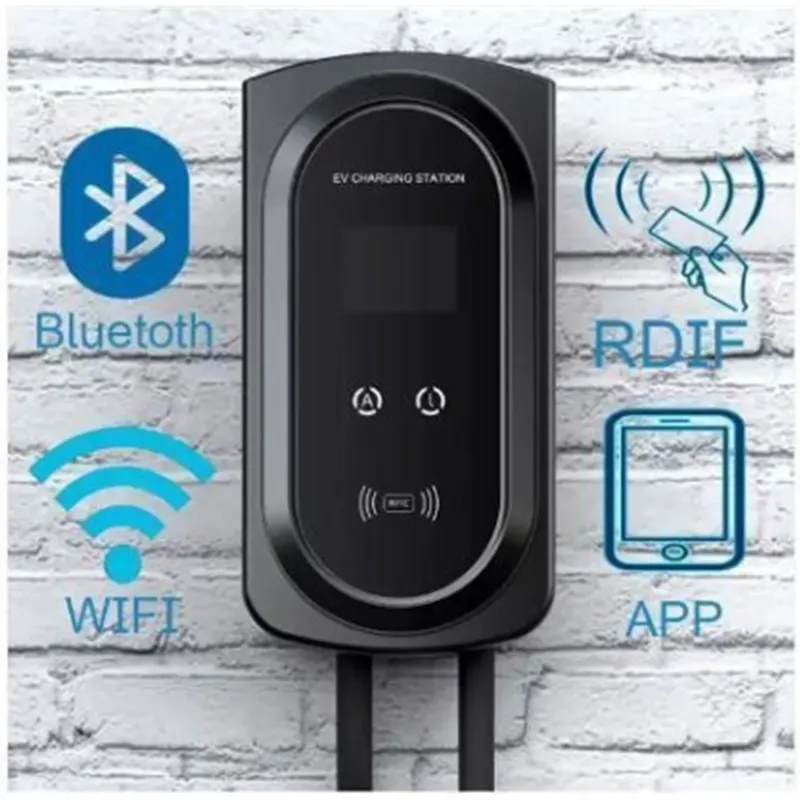

Bluetoth/4G/Etherent/WIFI(optional)
|
|||
Environmental indicators
|
Work temperature
|
-30℃-50℃
|
||
Work humidity
|
-5%-95% non-condensation
|
|||
Work altitude
|
<2000m
|
|||
Protection level
|
IP54
|
|||
Cooling Model
|
Natural cooling
|
|||
MTBF
|
50000hours
|
Advantages of Electric Car Charging Stations
As more and more people switch to electric vehicles, household charging stations are becoming increasingly popular. Here are some of the advantages of a home electric car charging station:
1. Convenience: One of the primary benefits of having a home charging station is convenience. You can charge your car overnight and wake up to a full battery every morning. You never have to worry about finding a public charging station while you’re out running errands.
2. Cost-effective: Over time, a home charging station can save you money compared to public charging stations, especially if you have a time-of-use electricity plan. Homeowners also have the option of installing solar panels, reducing their electricity bills even further.
3. Efficiency: Charging your car at home is more efficient than charging at a public station. When charging at home, the power comes directly from your electric panel, so there is no energy loss due to long-distance transmission.
4. Customizable: When you install a home charging station, you can choose the charger that best fits your vehicle’s needs. Some chargers are designed for faster charging, while others are designed for slower, more energy-efficient charging.
5. Increased home value: Installing a home charging station can increase the value of your home. Many homebuyers are looking for homes with charging stations, so adding one can be a smart investment.
In conclusion, a home electric car charging station offers convenience, cost-effectiveness, efficiency, customization, and increased home value. If you’re considering purchasing an electric vehicle, a home charging station is an investment that can pay off in the long run.
